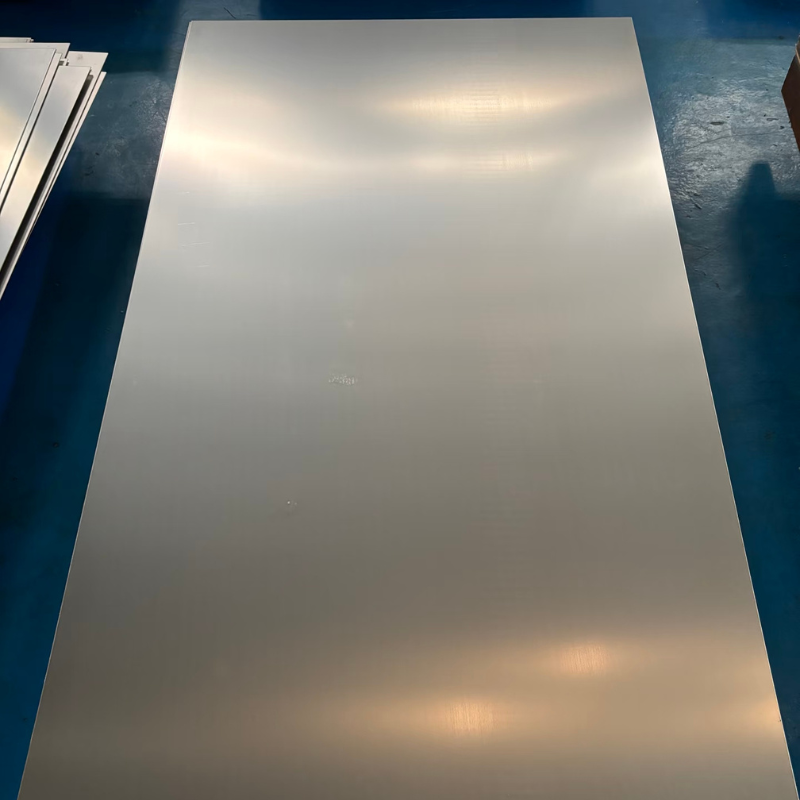

Medical Stainless Steel Sheets, Plates
Medical Stainless Steel Plate, Sheet
Medical Stainless Steel Plates are precision-manufactured to meet the stringent requirements of the healthcare industry, serving as critical components for surgical instrument housings, orthopedic implant bases, medical device platforms, and pharmaceutical equipment structures.
Key Features
Superior Biocompatibility
All alloys are non-toxic, non-irritating, and non-allergenic, minimizing the risk of adverse reactions when in contact with human tissue or bodily fluids. They comply with international biocompatibility standards to ensure safety for clinical implantation and instrument assembly.
Excellent Corrosion Resistance
Resistant to corrosion from bodily fluids, disinfectants, and sterilization processes. This property maintains the structural integrity of the plates even after repeated sterilization cycles, a critical requirement for medical equipment durability.
High Mechanical Stability & Flatness
Designed to withstand the mechanical stresses of surgical procedures, implant fixation, and device operation. The plates exhibit excellent rigidity, ductility, and wear resistance, ensuring dimensional stability and preventing deformation or fracture during processing and use.
Product Specifications & Customization
Our medical stainless steel plates are available in a wide range of specifications to accommodate diverse medical applications, with customizable options to meet specific customer requirements:
| Parameter | Standard Range | Customizable Options |
|---|---|---|
| Material Grade | 316LVM, 1.4441, 304, 17-4 PH | Other medical-grade alloys on request |
| Thickness | 0.1mm - 50mm | Custom thickness (precision tolerance ±0.003mm) |
| Width | 100mm - 1500mm | Custom width (max. 2000mm) |
| Length | 1000mm - 6000mm | Cut-to-length service (min. length 100mm) |
| Surface Finish | Polished (Ra ≤ 0.2μm), Pickled & Passivated | Mirror polish, sandblasted finish, etched surface |
| Tolerance | Precision (A1, A2, A3) & Standard Tolerances | Ultra-precision tolerance for special applications |
Applications
Medical stainless steel plates are widely used in the production of:
Surgical Instruments
Operating table components, instrument trays, scalpel handles, and forceps bases.
Orthopedic Implants
Bone plates, joint replacement components, spinal fixation plates, and trauma fixation devices.
Medical Devices
Endoscope housings, diagnostic equipment panels, dialysis machine components, and dental equipment parts.
Pharmaceutical Equipment
Cleanroom wall panels, storage tank liners, mixing equipment components, and drug processing molds.
Quality Assurance & Certification
We are committed to delivering the highest quality stainless steel plates, adhering to strict international standards and rigorous quality control processes. Our manufacturing system holds valid certifications for ISO 9001, ISO 13485.
Every batch of materials undergoes comprehensive testing by a 3rd party laboratory, including chemical composition analysis, mechanical property testing (tensile strength, yield strength, elongation), corrosion resistance testing (salt spray test, pitting corrosion test), and surface quality inspection, ensuring consistent performance and reliability.
ISO 5832-1
ISO 7153-1
ASTM F138
ASTM F899
