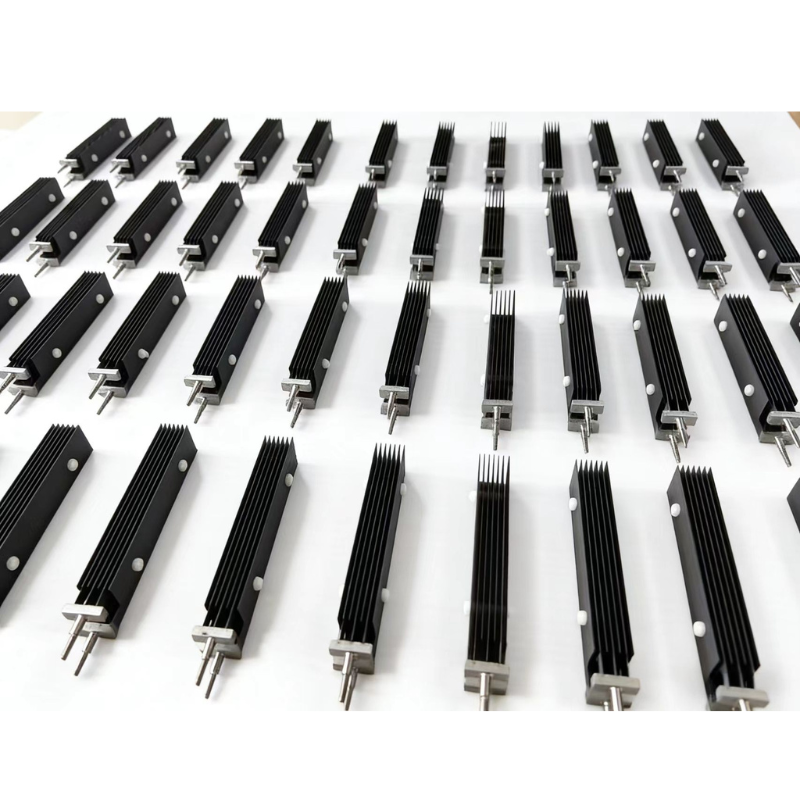

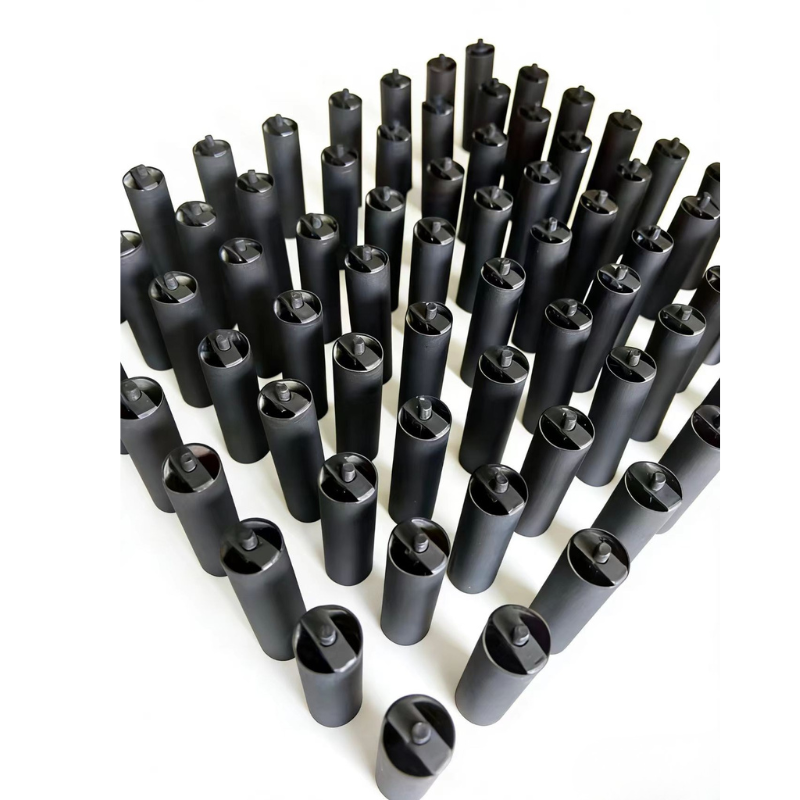

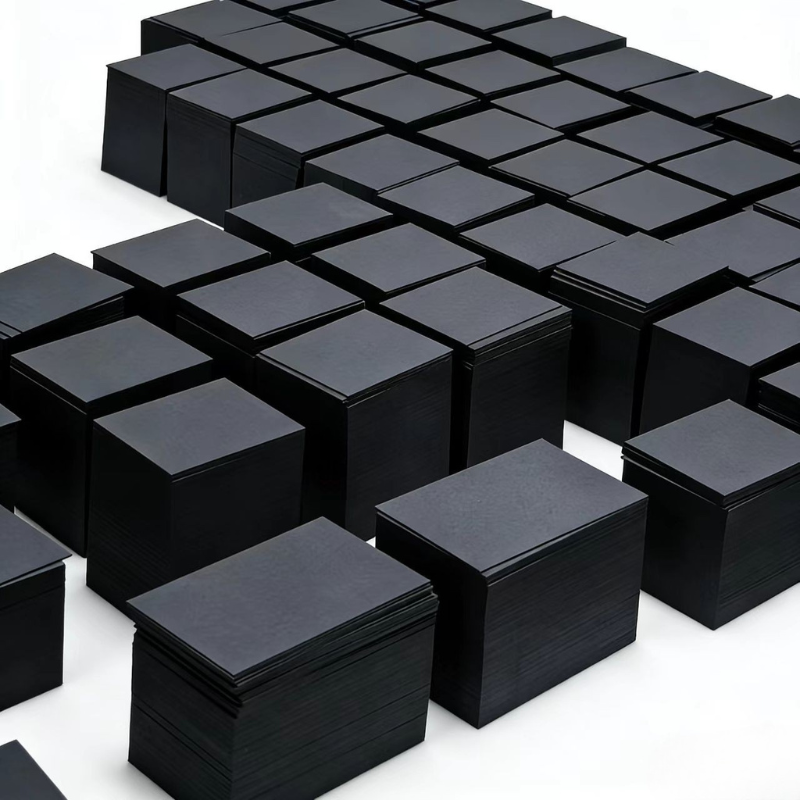

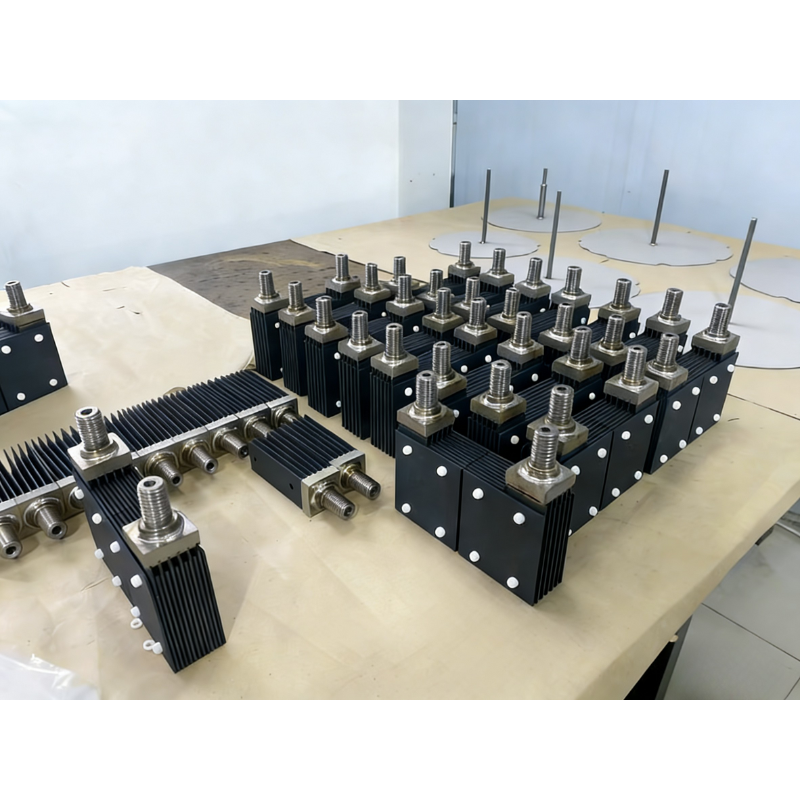

Titanium Electrodes: High-Performance Solutions for Industrial Applications

Advanced MMO (Mixed Metal Oxide) electrodes engineered for exceptional electrical conductivity, corrosion resistance, and long service life in demanding electrochemical environments.

What is a Titanium Anode

Titanium anodes, also known as Mixed Metal Oxide (MMO) electrodes or Dimensionally Stable Anodes (DSA), are high-performance electrolysis components characterized by exceptional electrical conductivity and corrosion resistance.

Constructed by coating a pure titanium substrate—such as plates, expanded mesh, tube or wire—with a composite of metal oxides, these anodes deliver dual functionality. Conductive oxides like ruthenium dioxide (RuO₂), iridium dioxide (IrO₂), or platinum (Pt) serve as the core catalytic layer, facilitating key electrochemical reactions (e.g., chlorine gas generation). Complementing this, titanium dioxide (TiO₂) acts as a cost-effective, non-conductive barrier layer that shields the substrate from corrosion without interfering with the target reaction.

Anode Production

  • Titanium substrate selection

    • Chemical composition / grade

    • Grain size / structure

    • Surface properties

  • Mechanical dimensioning

    • Cutting, forming, welding etc.

  • Surface preparation

    • Heat treatment / chemical degreasing

    • Sandblasting, to achieve the suitable roughness

    • Etching, chemicals process to removal of surfacial impurities

    • Preparation of surface structure for optimum mechanical and coating bonding

  • Base on client use condition and requirement to decide coating and manufacture process

    • Application

    • Current density

    • Expect lifespan

    • Special requirement about anodes

  • Paint preparation

    • High quality precious metal salt

    • Mixed with valve metal stabilizer

    • Different paint provides different function to coating

  • MMO Coating process / baking cycles

    • Applying solutions onto the substrate

    • Baking the anodes at elevated temperatures to convert the precious metal compounds into their oxides

    • Repeat this procedure until the required loading for each individual anode is achieved

  • Quality control

    • Automatic coating production line or by trained production staff

    • By weight increase

    • Strip/adhesion test

    • XRF total coating loading and composition measurement

    • Accelerated lifetime test

Applications of Titanium Anodes

Swimming Pool Water Treatment

Salt chlorinator for generating free chlorine from saltwater in swimming pool water treatment systems

Cathodic Protection Systems

Safeguarding buried pipelines, submerged marine structures, and other infrastructure from rust and degradation

Metal Electrowinning

Processes for extracting high-purity metals from ores

PCB Manufacturing

Precision electroplating and etching for printed circuit board production

Steel Surface Treatment

Electro tinning and electro-galvanizing operations to enhance corrosion resistance
